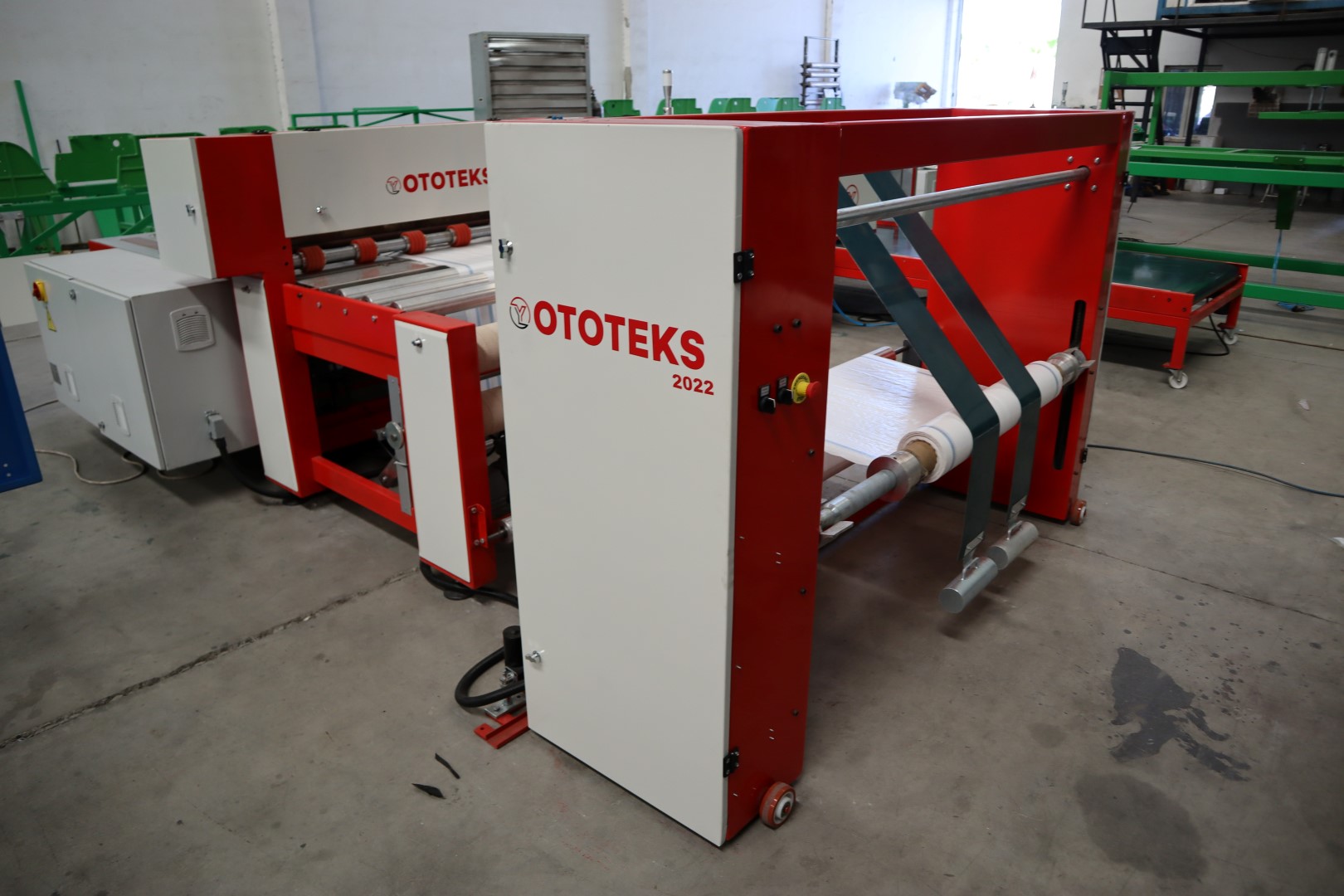

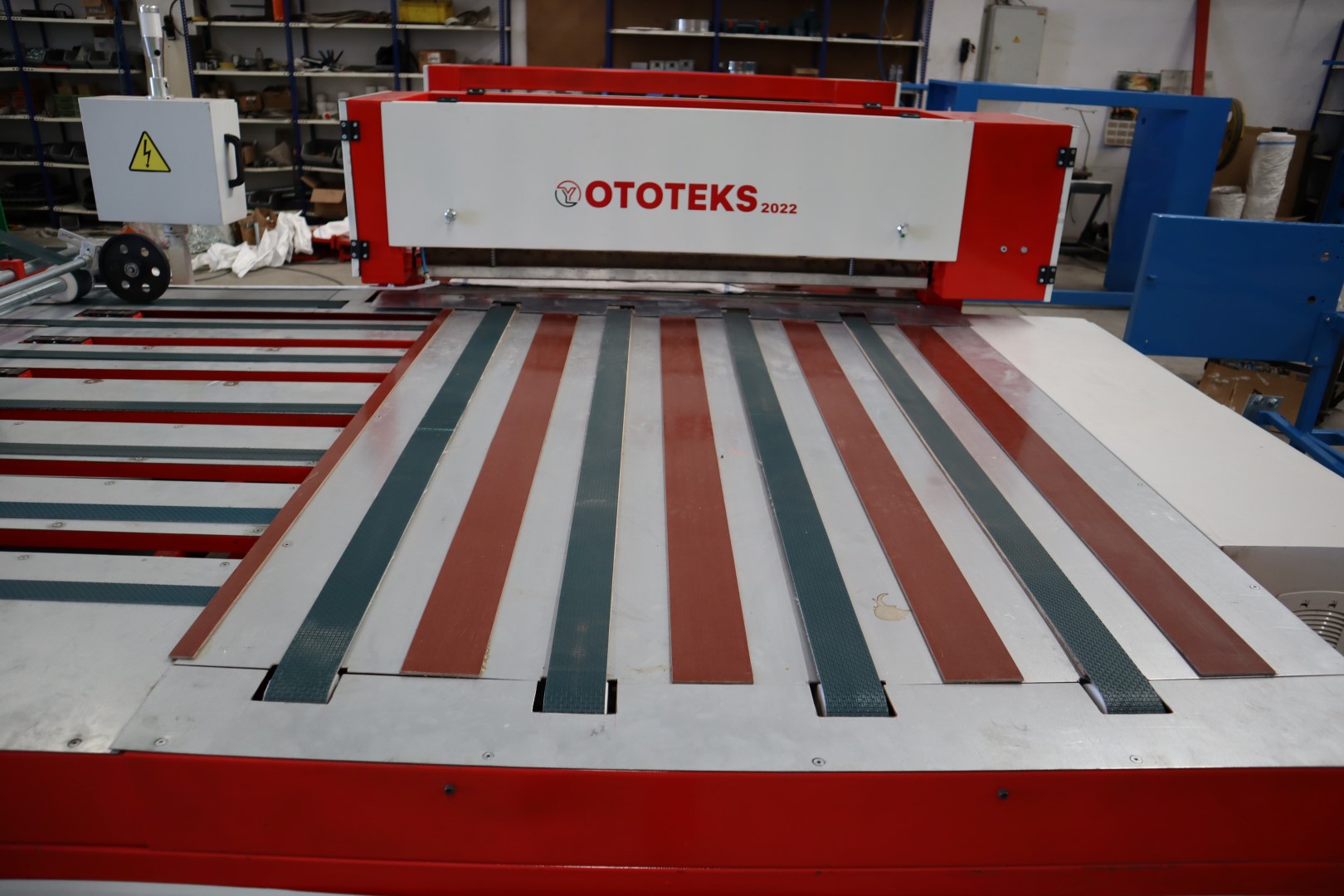

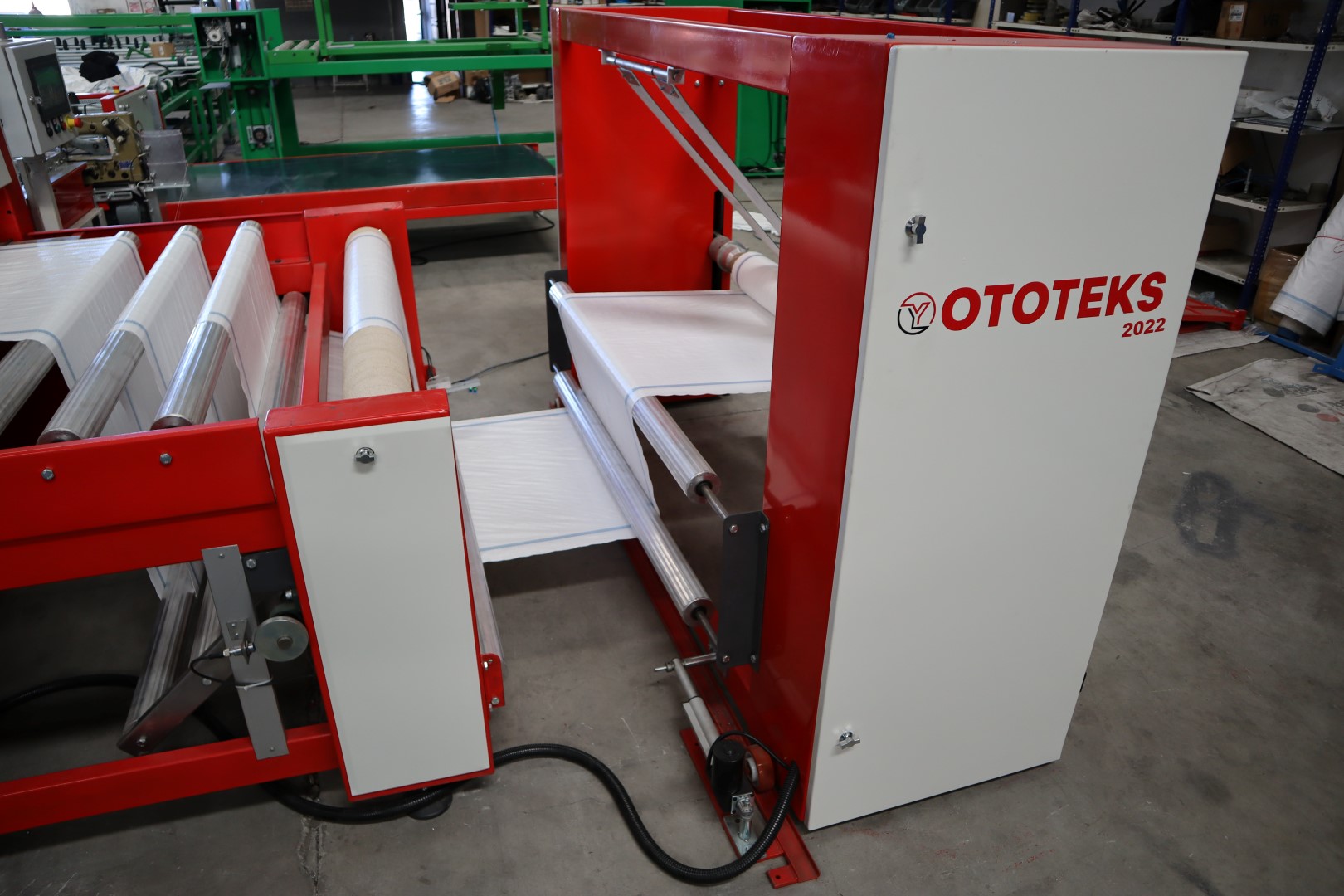

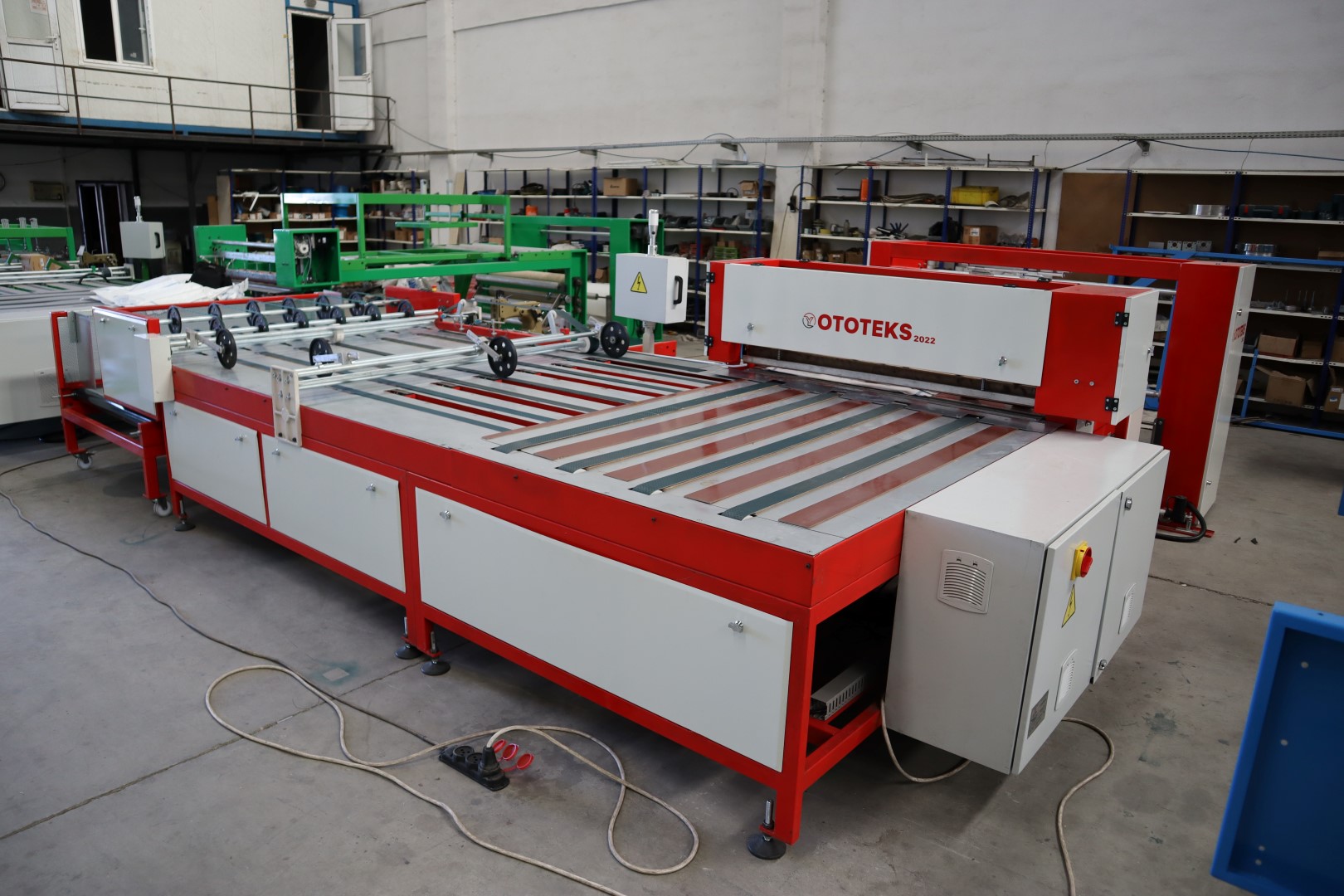

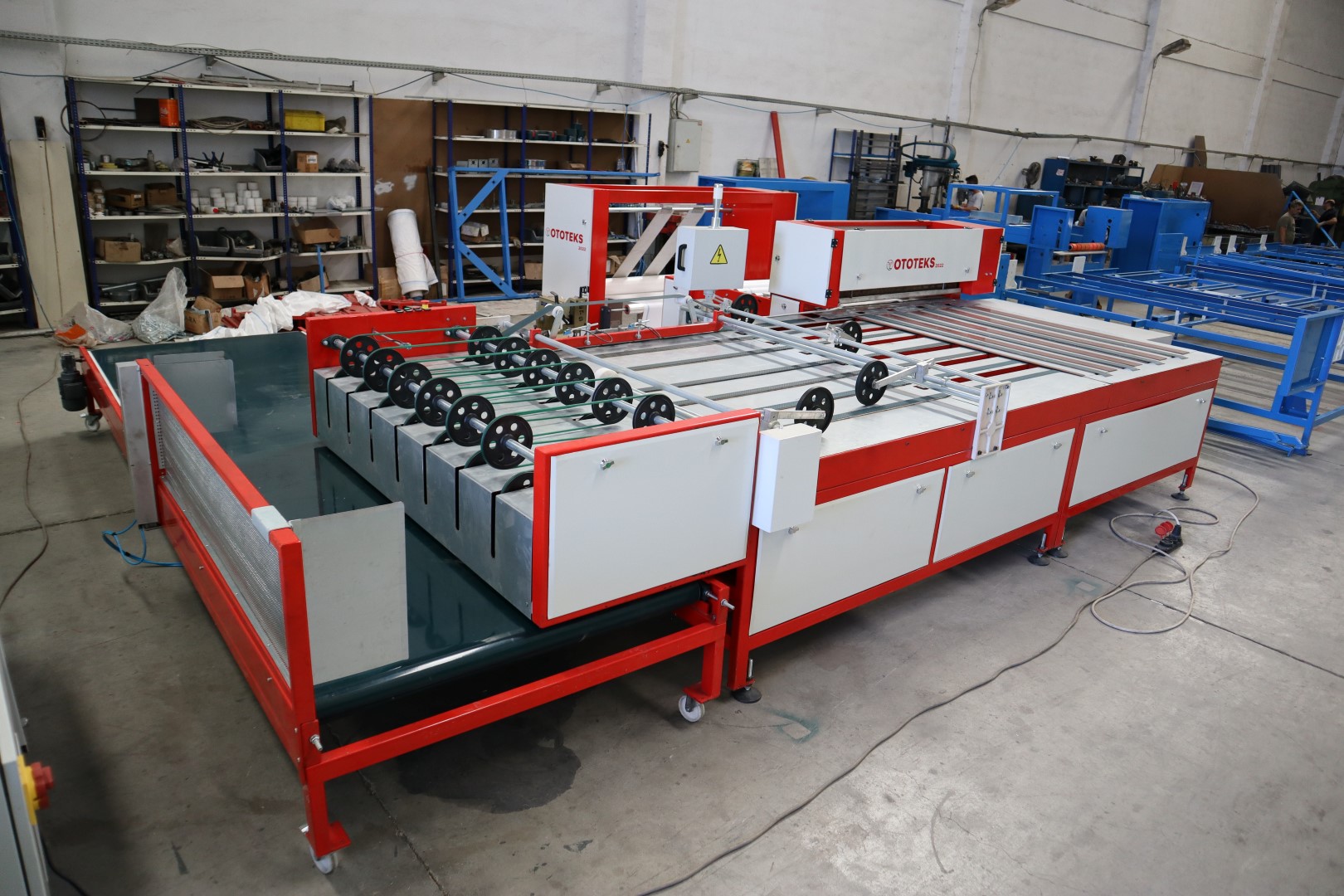

PP Bag Conversion Line

TECHNICIAL SPECIFICATIONS
Bag Width : 950mm max - 1250mm max - 1500mm max
Bag Length: 1400mm max - 1800mm max - 2000mm max
Capacity : 35-50 pieces / minute (15-30, 10-20) pcs/min.
Lenght Measurement: Servo Motor
Cutting System: Servo Motor
Gripper unit with servo motor
Edge control unit

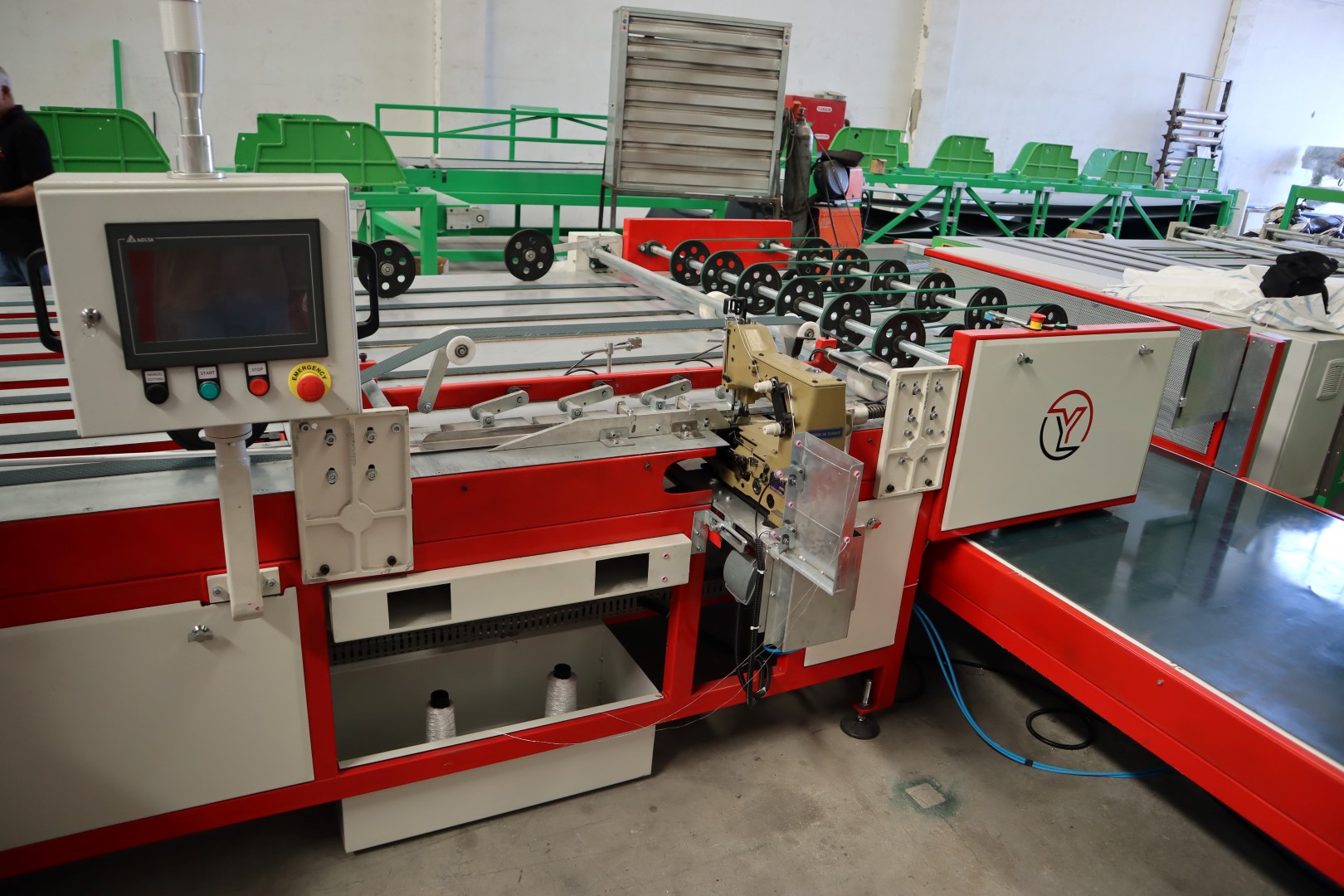

Sewing Machine

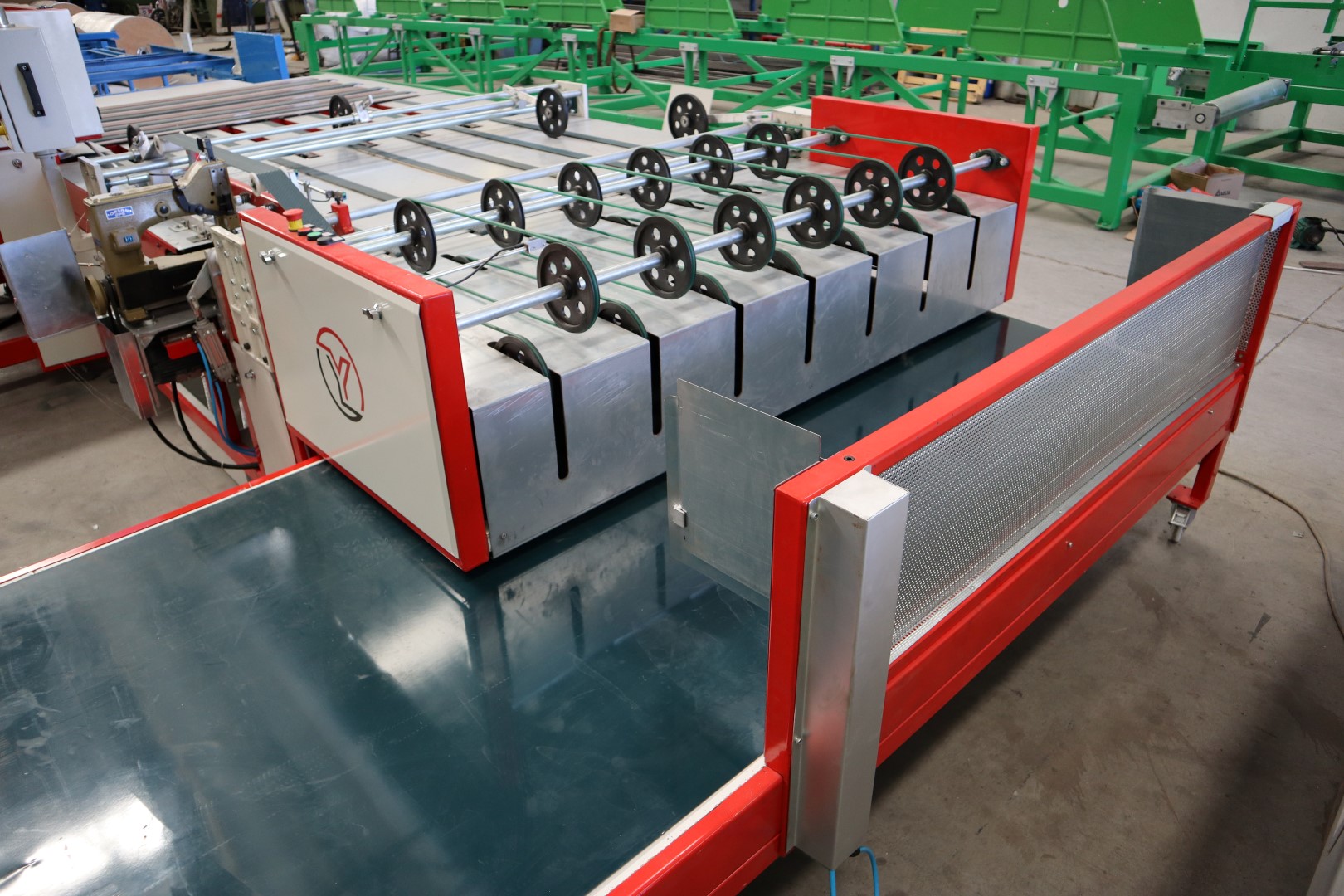

Single folding aparatus
Sewing Yarn Cut Sensors

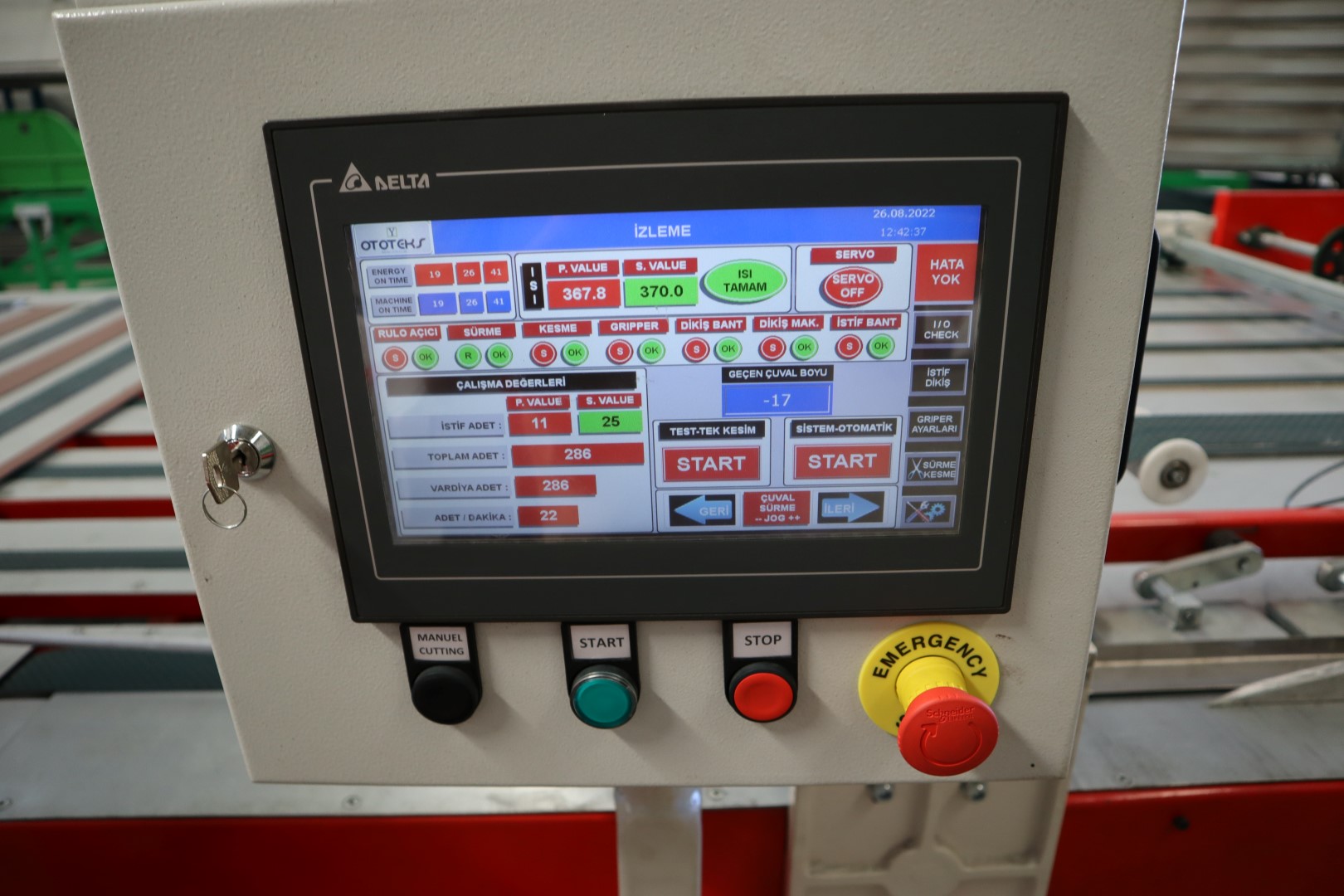

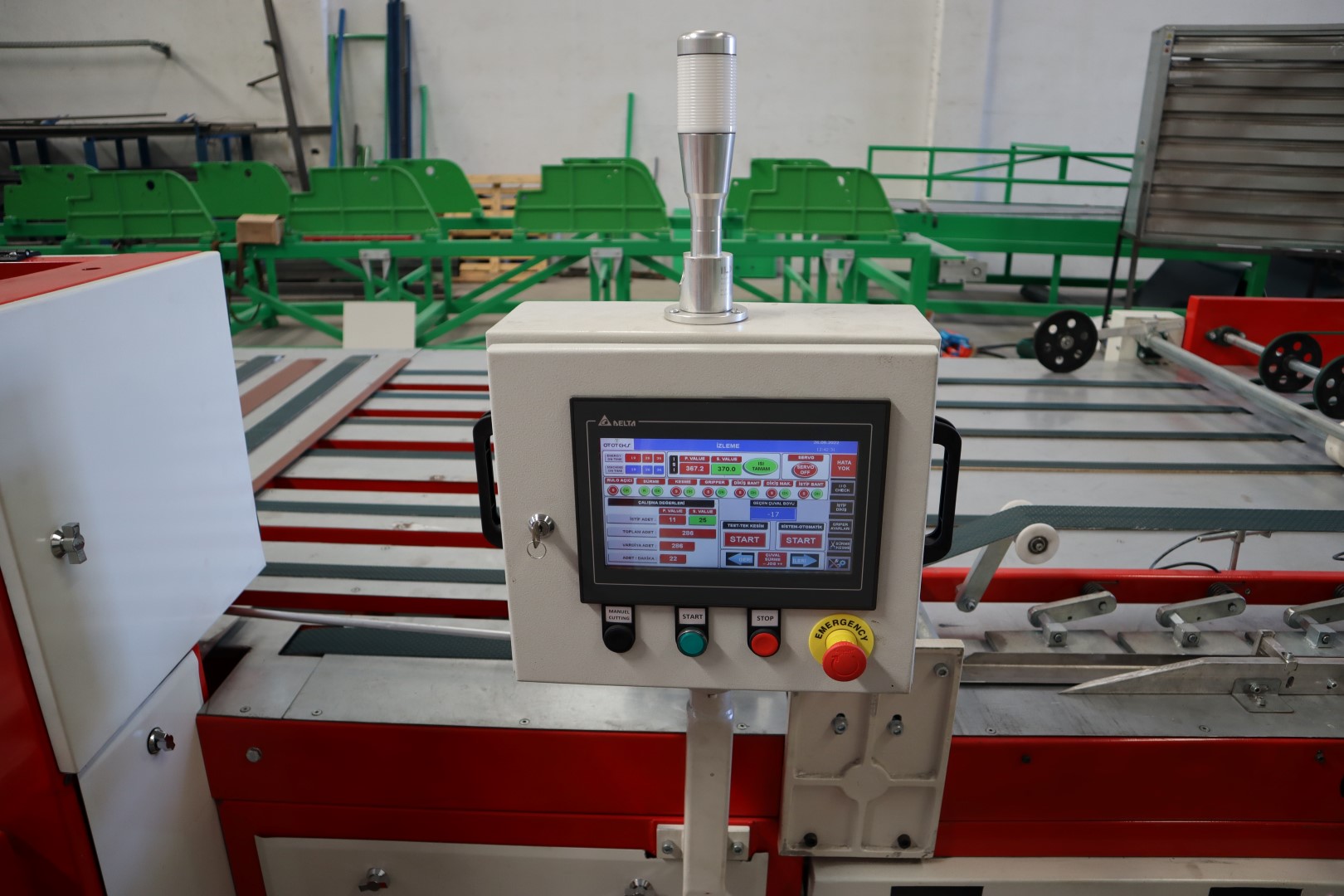

Operator panel: Touchpad plc screen
Zigzag hot cutting
Stowage unit to make stocking adjustable unit counter
Power: 11kw
Air Pressure: 6 Bar
