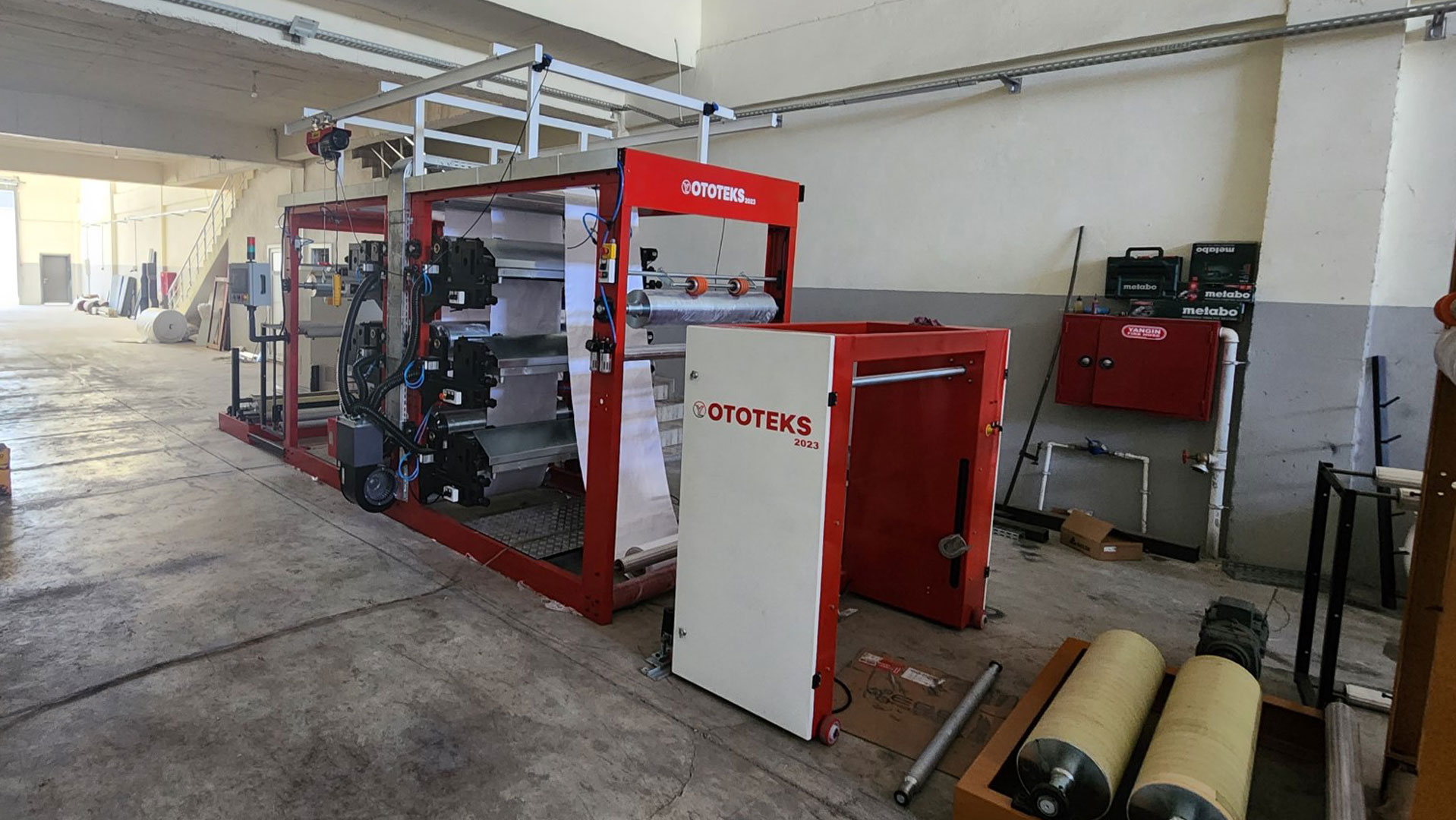

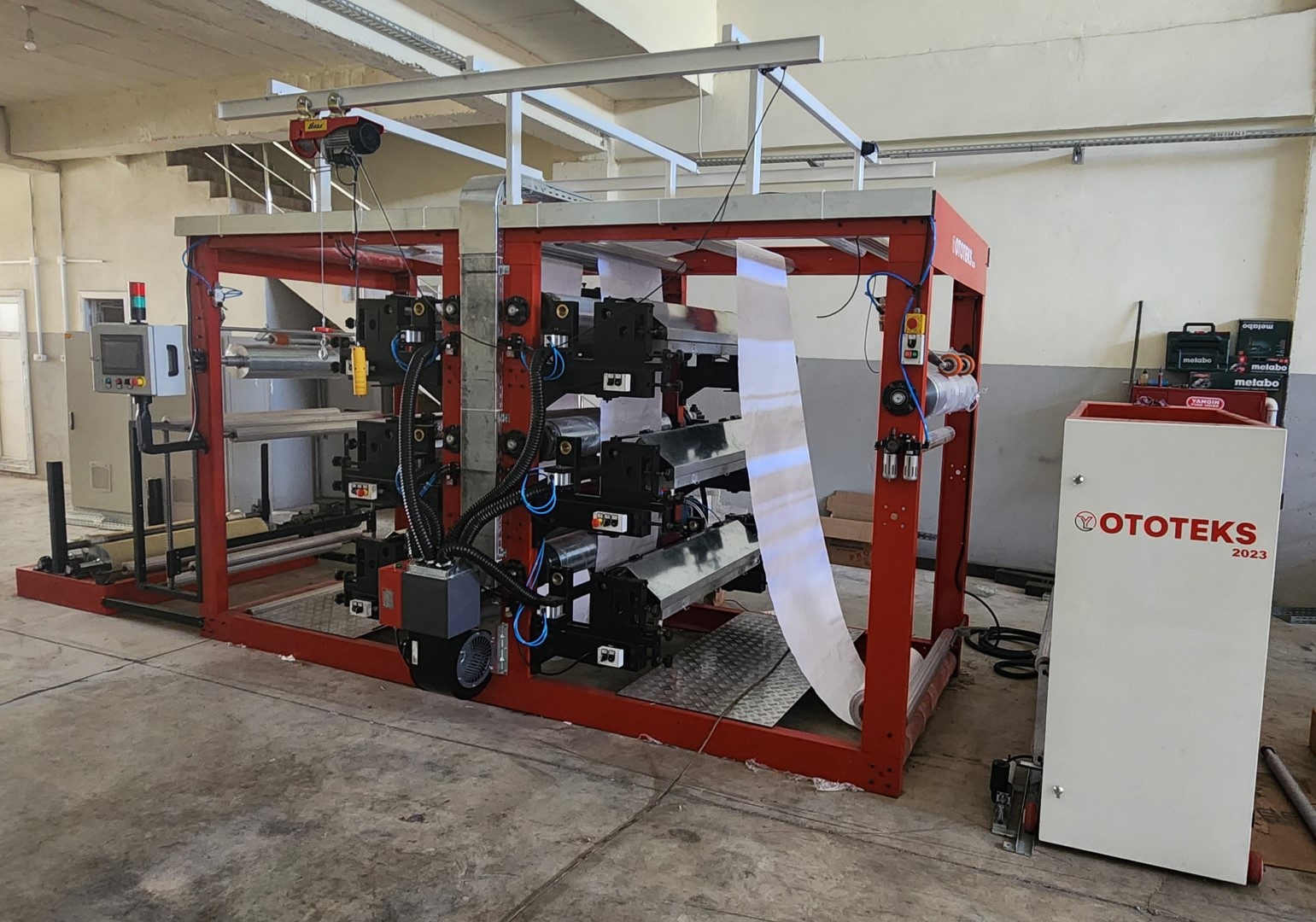

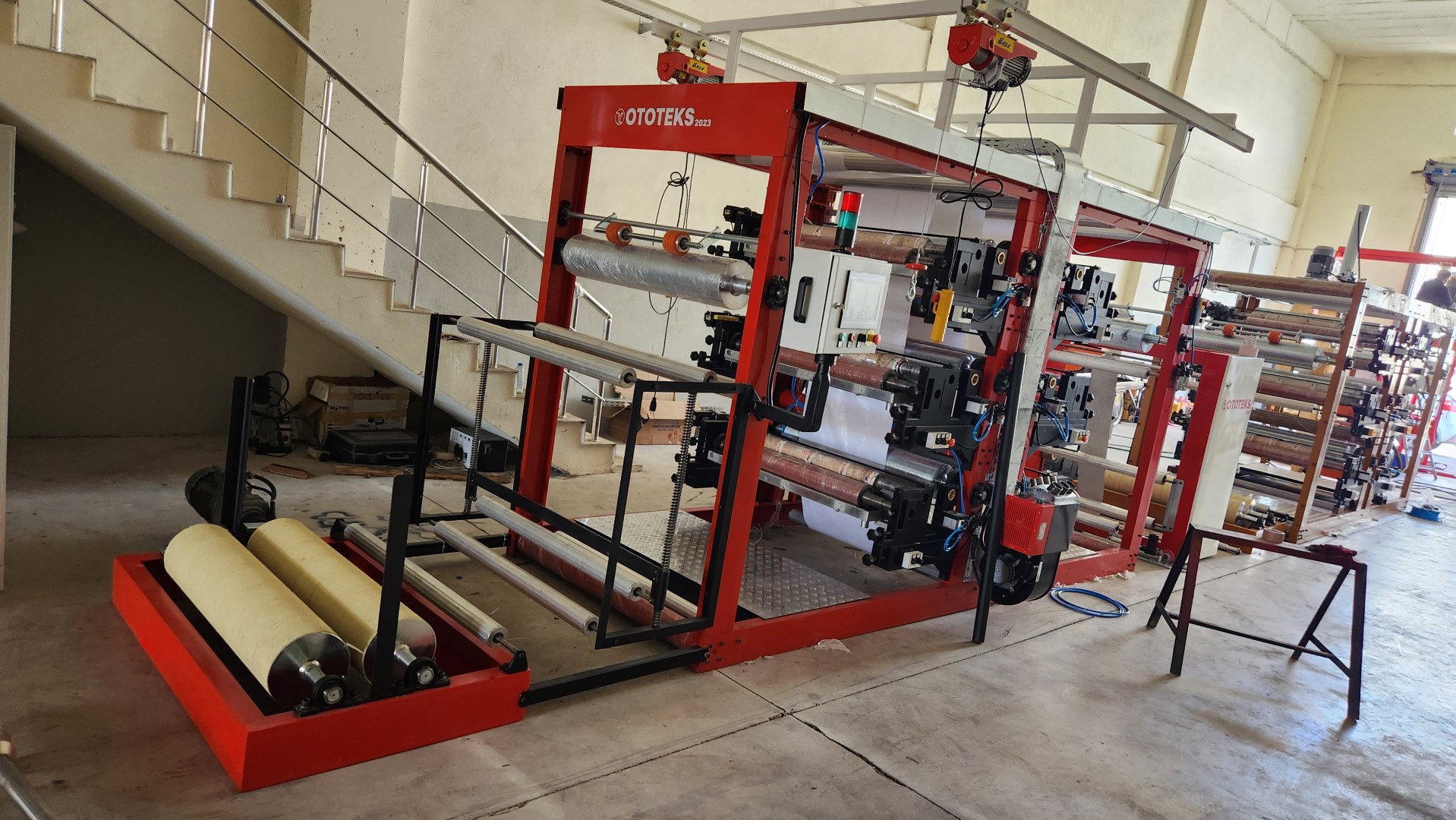

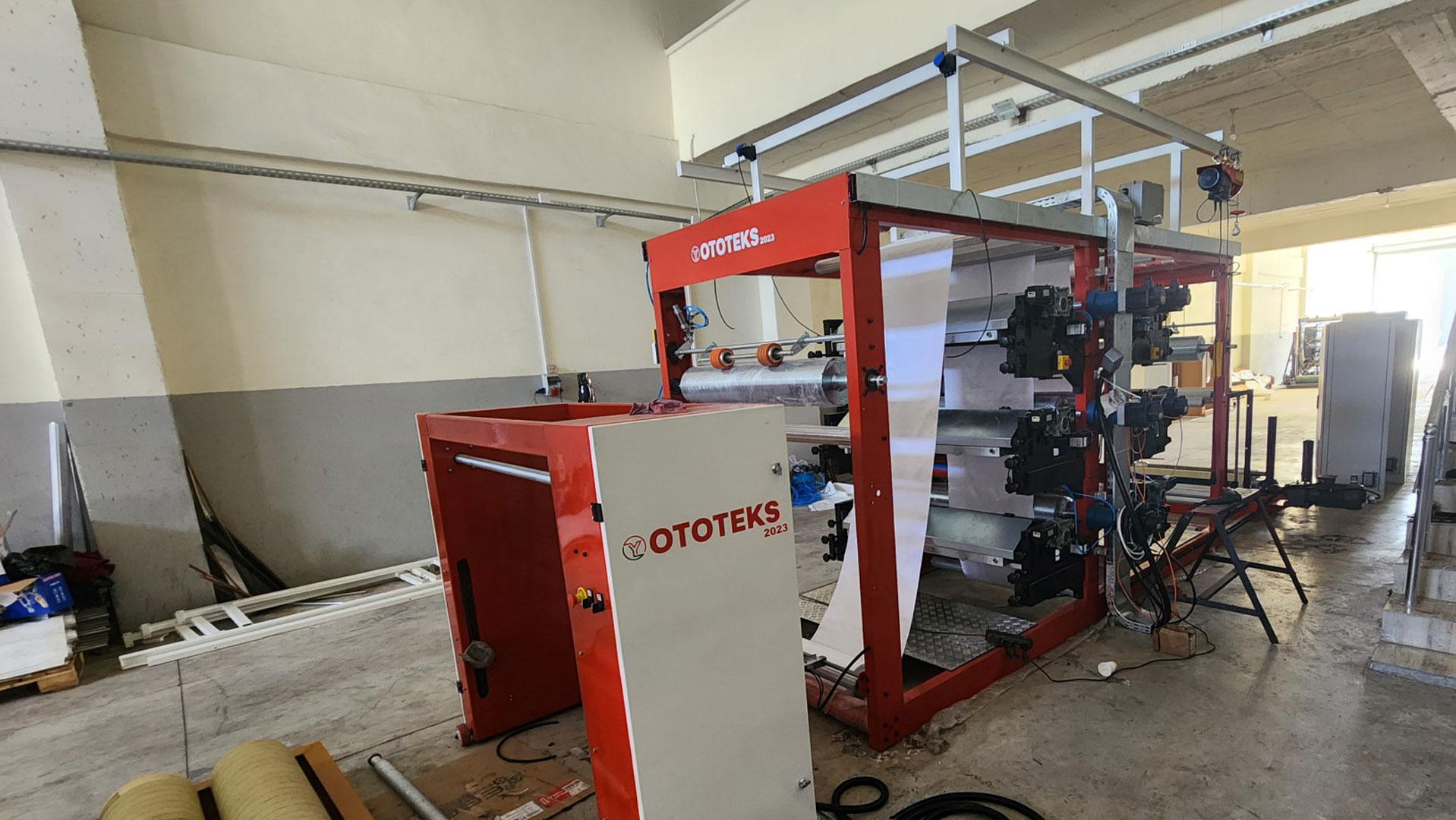

Rollflex

TECHNICIAL SPECIFICATIONS

Printing width: 750 mm

Web passage: 1000 mm

Printing Speed: 80-120 m/min

Plate thickness: 5.5 mm

Hardness of rubber roller: 75 shore

Tram rollen: 80-100 mm

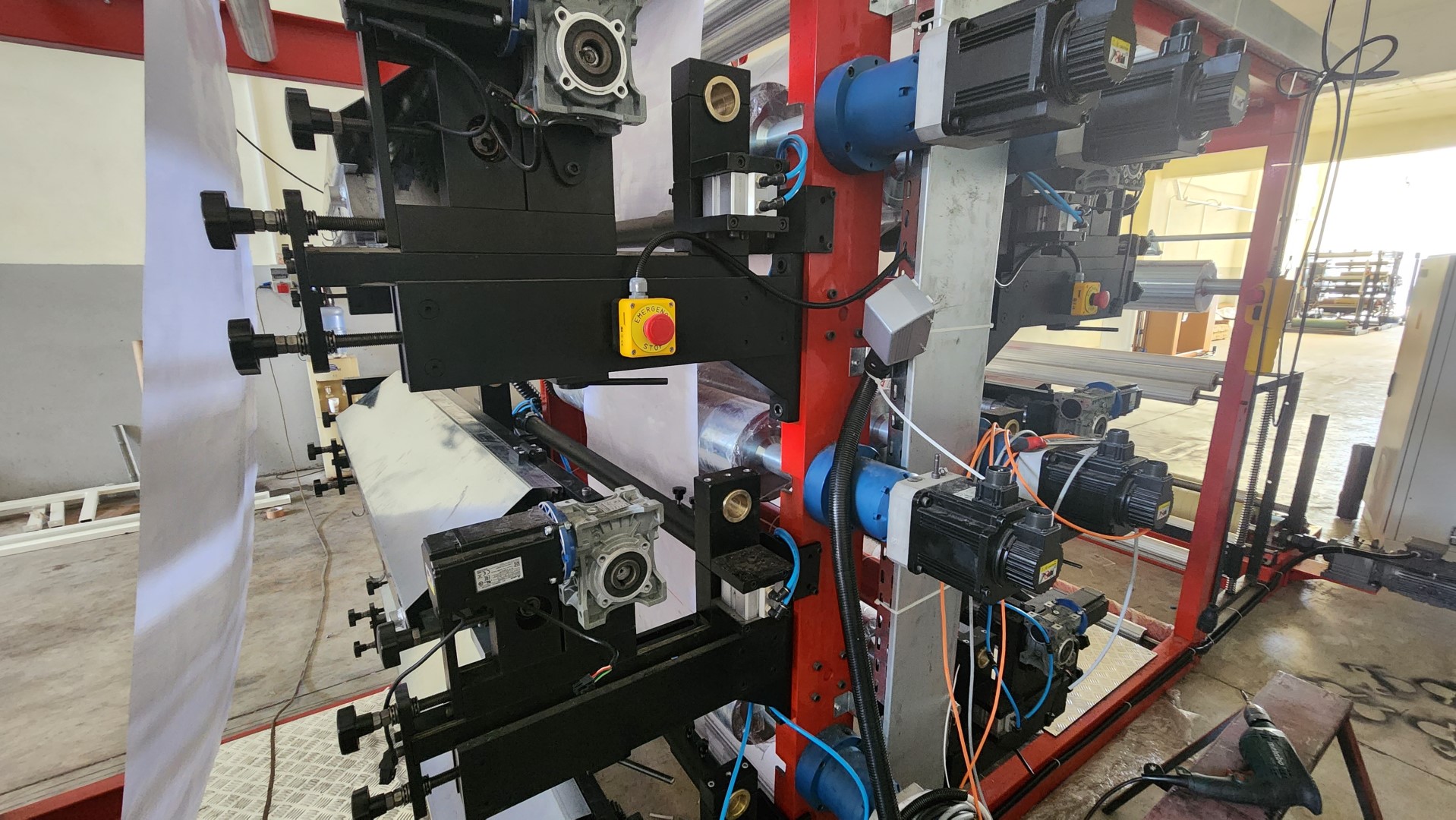

Main motor 2 kw 8 Unit Servomotor

Winding motor: 5.5 kw

Printing possibilities 6+0 or 5+1 or 4+2 or 3+3

Rewinding Tork system

Heating capacity 10 kw

Power wage 30kw

Edge control unit

Fabric Loading: With Lift System

Drum 6 pieces

Drum Loading: Crane Systems
