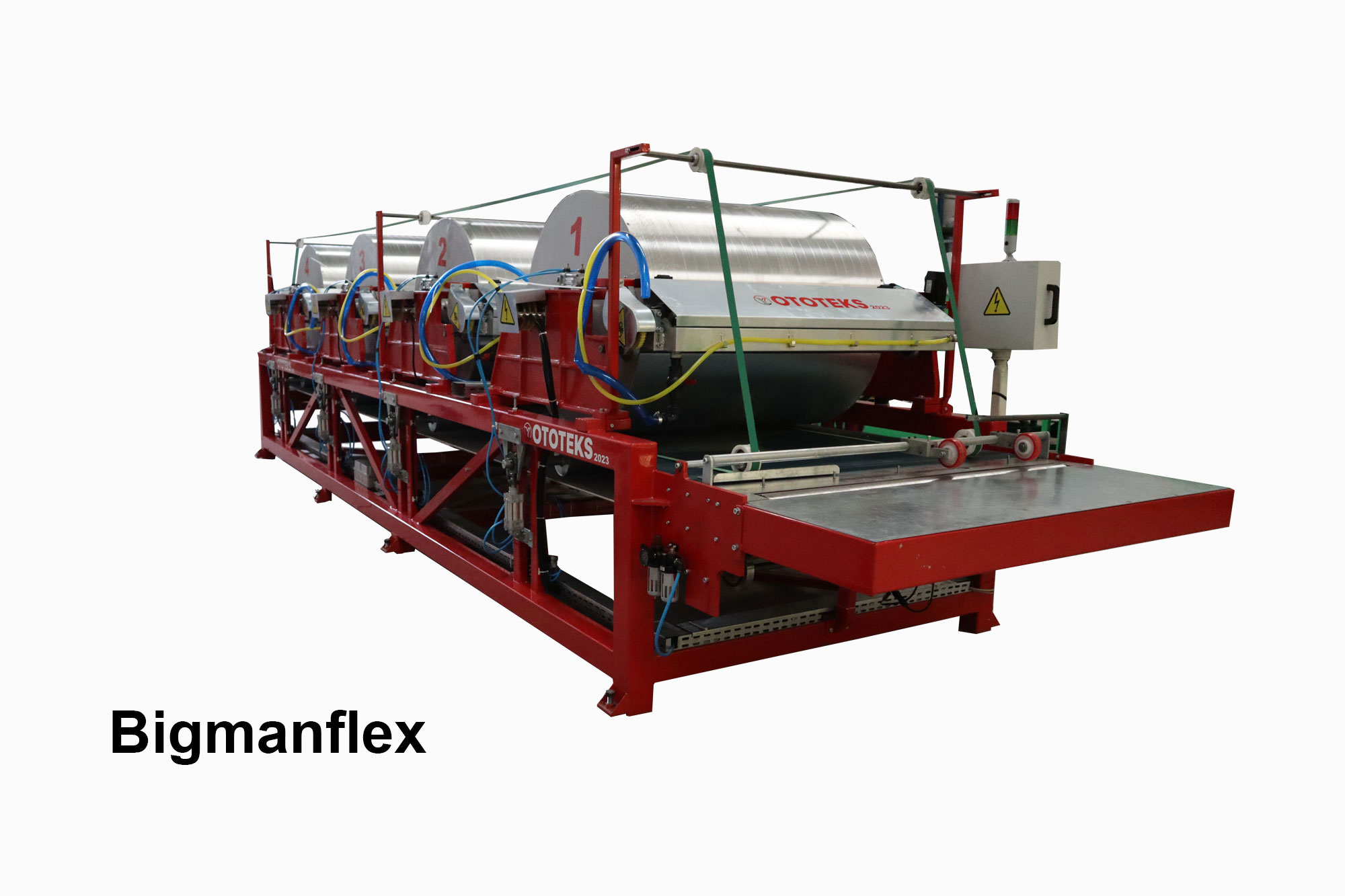

Bigmanflex

TECHNICIAL SPECIFICATIONS

Cliché Cylinders with servo motors 1.5 kw

Cliché Cylinders Dimension: 1000 mm diameter

Rubber + Anilox Cylinder with Servo motors 1 kw

Band Movement: Servo Motor

Pneumatic Control

Photocell Control

Printing adjustment properties with touchpad screen

The property of not press when the bag is not on the band

Capacity: 800 piece/ hour

(it depends on operator’s hand feeding)

Touchpad Plc Screen

Capacity Meter: 60 m / Minute

Fabric width : 1400 mm max

Fabric lenght : 2900 mm max

Print widht: 900 mm max

Print lenght: 2900 mm max

Printing Accuracy: +/- 1 mm

Cliche thickness: 5.5 mm

Hardness of rubber roller : 75 shore

Ink Feeding with ink pumps

Stowage can be second operator by hand

Power: 15 kw

Air Pressure: 6 Bar
